Technical Index:
Fiber Laser source : 1500 to 20000W Fiber Laser
Steel tube diameter: 60 to 350mm
Steel tube length: 3000 to 9000mm
Cutting thickness: 0.5-15mm (Depending on the material)
Laser Head: Raytools
Laser Wavelength: 1064nm
Position accuracy: 0.05mm
Repeat Precision: 0.01mm
Rated speed of chuck: 100r/min.
Operating temperature: 0℃-40℃
Servo motor: Japan Fuji servo motor
Control system: Cypcut system
Software support formats: AI, BMP, PLT, DXF, DST etc
Transmission: Rack
Guide Rail: Taiwan PMI or HINWIN Guide
Auxiliary gas: N2 ,O2
Feature:

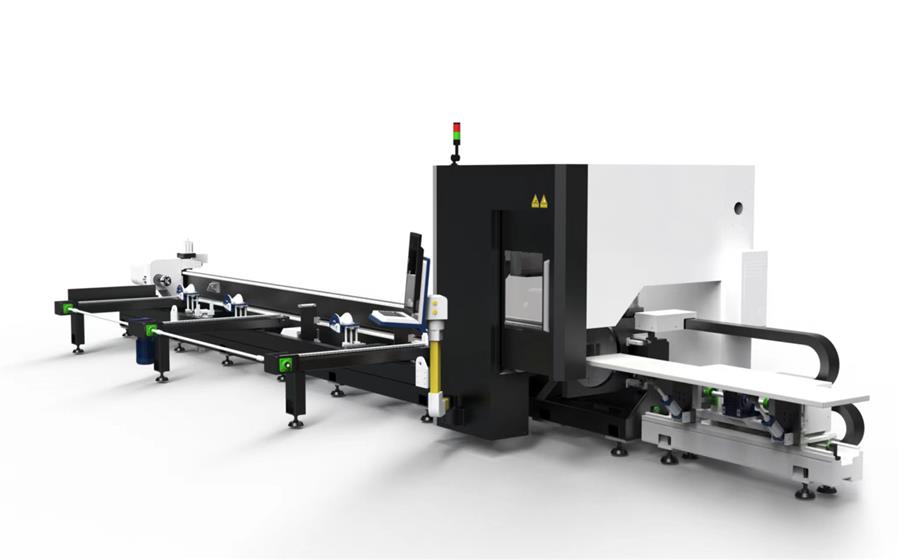

1. Laser pipe cutting machine is suitable for 6m cutting different types of metal pipes (square/round pipe). It's machine structure using steel plate welding, heat treatment process, so it has stable performance and smooth operation. Also has laser power adjustment function, which can ensure cutting quality and simple and convenient operation; Multiple ports are left for easy expansion.
2. Simple structure, stable and efficient, classic two chuck design, convenient installation, fast production, high efficiency, convenient operation, man-machine interface, simple to understand.
3. Pneumatic precision chuck, anti-deformation support, pneumatic opening clip, automatic centering, clamping stability, special support frame to avoid pipe sag deformation. The machine performance is stable, and the main accessories are imported.
4. The machine covers less area and the space utilization rate is large.
Application:
Display props, medical equipment, fitness equipment, metal furniture, office tables and chairs.
