Technical Index:
Fiber Laser source : 2000W to 10000W Fiber Laser
Working size: 1400*1000mm (55*39.3")
Cutting thickness: 0.5-20mm (Depending on the material)
Laser Head: Raytools
Laser Wavelength: 1064nm
Position accuracy: 0.03mm
Repeat Precision: 0.02mm
Y Axis Route: 1050mm
X Axis Route: 1425mm
Z Axis Route: 120mm
Maximum cutting speed: 50m/min.
Operating temperature: 0℃-40℃
Workbench maximum load: 1200kg
Drive type of X, Y axis: Imported servo drive (Fuji, Japan)
Servo motor: Japan Fuji servo motor
Control system: Cypcut system
Software support formats: AI, BMP, PLT, DXF, DST etc
Moving mode: Imported Rack
Rack transmission: APEX or J&T Dual Rack For Y Axis
Guide Rail: Taiwan PMI or HINWIN Guide
Reducer: Shimpo
Auxiliary gas: N2 ,O2

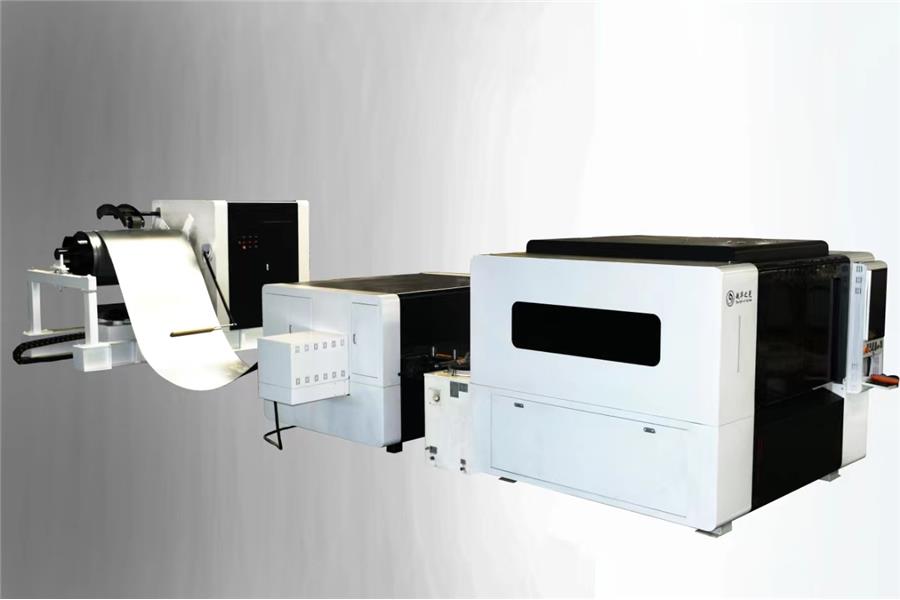

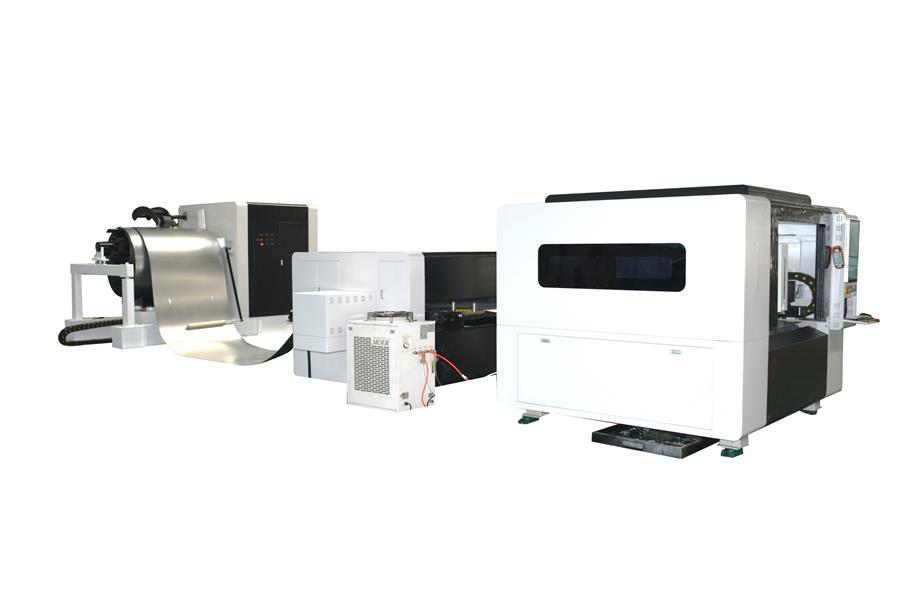

Automatic flatten the metal sheet from roll
Automatic feeding
Automatic cutting
Application:
Cutting on plate or tube in metal, mainly for cutting on SS, carton steel, manganese steel, galvanized plate, alloy plate, rare metal.
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting,
poster, auto parts, display equipment, hardware and metal processing.
